Características Galeria Descrição de produto Peça umas citações

Características

Especificações

Tensão: 220V, 380V, 110V, 480V

Peso: 215 quilogramas

Método de aquecimento: Aquecimento elétrico

Material: SUS304

Temperatura máxima: 800C

CONTROLADOR: PID termostato ou controlador PLC

Velocidade de aquecimento: RT~100C, 10min

sistema de aquecimento: PID+S.S.R.

Precisão: 0,3C

Uniformidade: 1%

Sistema de circulação: Ciclo de nível da força aérea

Tamanho interno: 45 × 40 × 40 cm (LY-645)

Tamanho externo: 66 × 92 × 55 cm (LY-645)

Taxa de energia: 3,5 kW (Ly-645)

faixa de temperatura: RT ~ 500 ℃ (padrão), até 800 ℃ (personalizável)

Destacar:

Industrial drying oven 800C high temperature

Electric heating drying oven SUS304

PID controller industrial drying oven

Informação básica

Lugar de origem: Guangdong, China

Marca: LIYI

Condições de Pagamento e Envio

Galeria

Industrial Drying Oven 800C Electric Heating SUS304 PID Controller

Descrição de produto

Liyi Big Electronics Industrial Hot Heat Forced Treat Air Circulation Drying Oven Machine

Key Features

High-temperature capability up to 800℃
Precision temperature control with ±0.3℃ accuracy
Uniform heat distribution with ±1% uniformity
Multiple voltage options: 220V, 380V, 110V, 480V
Durable SUS304 stainless steel construction
Advanced PID+S.S.R. heating system
Forced air circulation for efficient heat transfer
Available with PID thermostat or PLC controller

Technical Specifications

Attribute	Value
Type	Drying Oven
Applications	Chemicals Processing, Plastics Processing
Voltage Options	220V, 380V, 110V, 480V
Temperature Range	Up to 800℃
Heating Method	Electric Heating
Material	SUS304 Stainless Steel
Controller	PID Thermostat or PLC controller
Heating Speed	RT~100℃ in 10 minutes
Accuracy	±0.3℃
Uniformity	±1%
Circulation System	Air force level cycle
Warranty	1 Year
Weight	215 kg

Product Description

Our industrial drying ovens are engineered for high-temperature processes up to 800℃, suitable for various applications including drying, curing, aging, annealing, stress relieving, bonding, tempering, pre-heating, and forming. These robust units feature insulated doors and can process products individually or in batches, with flexible loading options including manual or automated systems.

Standard Models (Temperature Range RT~500℃, Customizable up to 800℃)

Model	Inner Size W×H×D (cm)	External Size W×H×D (cm)	Power	Power Rate (KW)
LY-645	45×40×40	66×92×55	220V/380V	3.5
LY-660	50×60×50	70×125×65	220V/380V	4.5
LY-690	60×90×50	80×156×65	220V/380V	5.5
LY-6100	80×100×60	100×166×75	220V/380V	8
LY-6120	90×120×60	110×186×75	220V/380V	10
LY-6140	140×120×60	160×186×75	220V/380V	12
LY-6160	160×140×80	180×206×97	220V/380V	14
LY-6180	180×140×100	200×200×118	220V/380V	16
LY-OEM	Custom specifications available

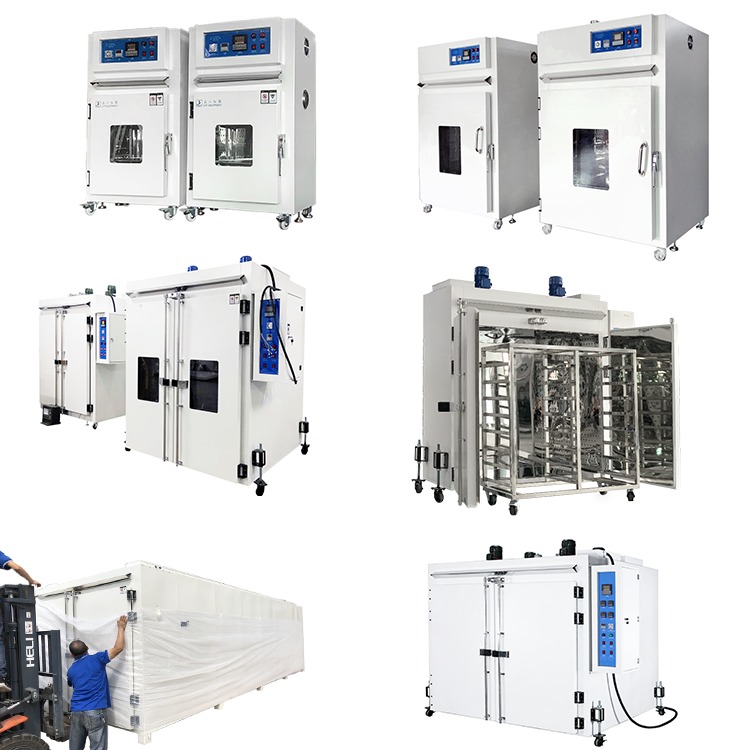

Product Images

Frequently Asked Questions

Are you the manufacturer? What after-sales service do you offer?

Yes, we are a professional manufacturer of industrial ovens and testing equipment. All machines come with a 12-month warranty after shipment, with free maintenance during this period. For overseas shipments, we extend this to 14 months. Technical support is available via email or video chat, with solutions typically provided within 24-48 hours of problem identification.

What is the delivery time?

Standard models are typically available from stock. For non-stock items, standard delivery time is 15-20 working days after deposit receipt. Urgent orders can be accommodated with special arrangements.

Do you accept customization and branding?

Yes, we offer comprehensive OEM and ODM services, including custom specifications and branding with your logo on the equipment.

How is installation handled?

Most machines are shipped fully assembled - simply connect the power cable to begin operation. We provide English-language operation videos and can assist with on-site installation when necessary.
