Liyi Salt Spray Test Chamber with ACSS 35°C±1°C and CASS 50°C±1°C for NSS Testing and 180L Capacity

1
MOQ
Liyi Salt Spray Test Chamber with ACSS 35°C±1°C and CASS 50°C±1°C for NSS Testing and 180L Capacity
Características Galeria Descrição de produto Peça umas citações
Características
Especificações
Precisão: NSS.ACSS 35°C±1°C/CASS 50°C±1°C
Poder: 650W
Classe de proteção: IP56
Tensão: 220 V, 380 V, 240 V, 110 V
Temperatura da Câmara de Teste: NSS.ACSS 35°C±1°C/CASS 50°C±1°C
Capacidade da câmara de teste: 180L,270L,600L,1440L ou personalizado
Quantidade do pulverizador: 1.0~2.0ml/80cm2/h
Ph: 6.5~7.2 3.0~3.2
Controlador: Tela sensível ao toque PID ou LCD
Temperatura do ar saturada: NSS.ACSS 47°C±1°C/CASS 63°C±1°C
Tamanho da câmara de teste: 60*45*40cm, 90*60*50cm, 1200*1000*500cm, 1500*1000*500cm, 2000*1000*500cm
Capacidade máxima de líquido: 15L, 25L, 40L
Fonte de energia: AC220V,10A; AC220V,15A; CA220V,30A
Garrafa de pulverização: Princípio Bo Nute
Parâmetros da exposição: Temperatura, umidade, pressão, capacidade de pulverização, tempo
Destacar:

ACSS 35°C±1°C Salt Spray Test Chamber

,

CASS 50°C±1°C Salt Fog Test Chamber

,

180L Capacity Corrosion Test Chamber

Informação básica
Lugar de origem: Guangdong, China
Marca: LIYI
Condições de Pagamento e Envio
Descrição de produto
Liyi Salt Fog Corrosion Test Chamber NSS Testing Lab Electronic Salt Spray Tester for Battery Metal Test
The Liyi Salt Fog Corrosion Test Chamber is designed to evaluate the corrosion resistance of metal materials and their protective coatings, including electroplating, anodizing, conversion coatings, and paint finishes. This accelerated corrosion testing equipment helps predict material suitability by simulating harsh environmental conditions.
Key Features

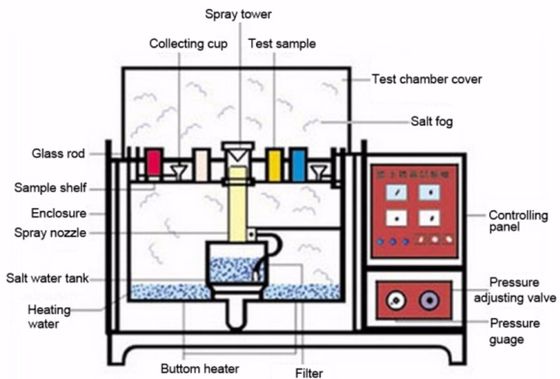

  • Advanced spray nozzle system based on the Bo Nute Principle, ensuring saline water atomization without crystallization
  • Precision digital microcomputer controller for accurate temperature regulation
  • Comprehensive display showing temperature, humidity, pressure, spray capacity, and test duration
  • Compatible with international testing standards worldwide
Technical Specifications
Model LY-609-60 LY-609-90 LY-609-120 LY-609-150 LY-609-200
Design Standard GB/T 10587-2006, GB/T 10125-1997, JIS-D0201, H8502, H8610, K5400, Z2371
Test Chamber Capacity (L) 108L 270L 600L 750L 1000L
Temperature (Test Chamber) NSS/ACSS: 35°C±1°C | CASS: 50°C±1°C
Temperature (Saturated Air Cylinder) NSS/ACSS: 47°C±1°C | CASS: 63°C±1°C
Test Chamber Size (L×W×D cm) 60×45×40 90×60×50 120×100×50 150×100×50 200×100×50
Max Capacity of Test Liquid (L) 15 25 40 40 40
Power AC220V, 10A AC220V, 15A AC220V, 30A
Product Images

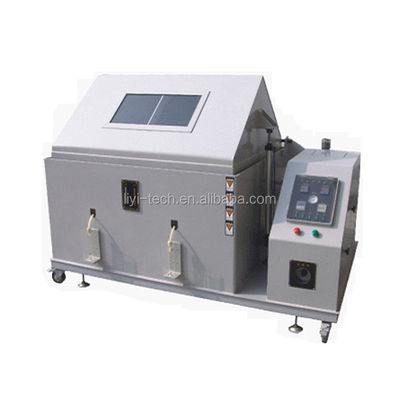

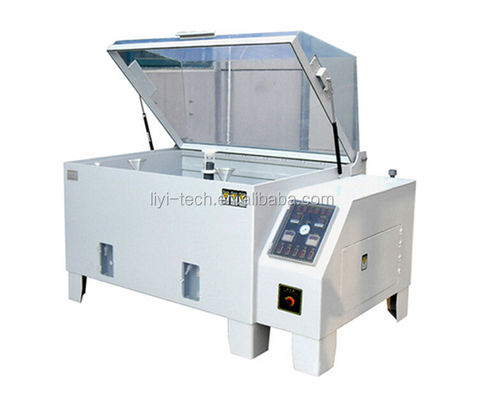

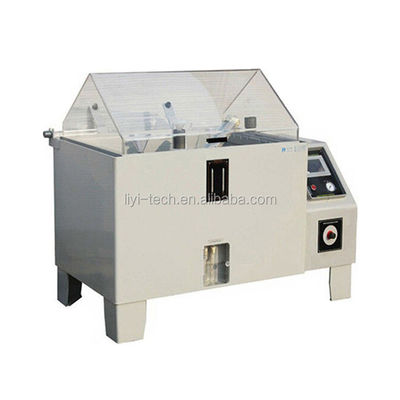

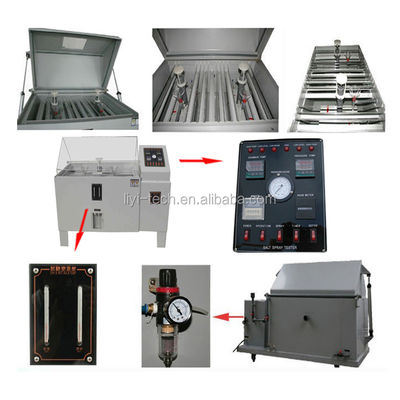

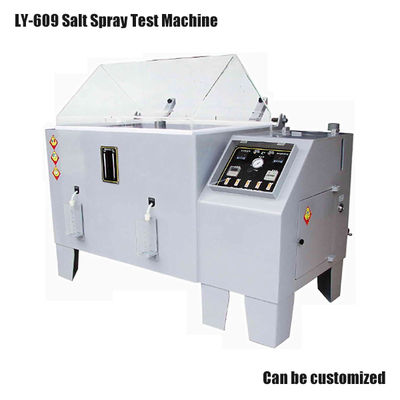

Liyi Salt Spray Test Chamber with ACSS 35°C±1°C and CASS 50°C±1°C for NSS Testing and 180L Capacity 0 Liyi Salt Spray Test Chamber with ACSS 35°C±1°C and CASS 50°C±1°C for NSS Testing and 180L Capacity 1 Liyi Salt Spray Test Chamber with ACSS 35°C±1°C and CASS 50°C±1°C for NSS Testing and 180L Capacity 2 Liyi Salt Spray Test Chamber with ACSS 35°C±1°C and CASS 50°C±1°C for NSS Testing and 180L Capacity 3
Storage Information
Selected models are maintained in stock for urgent purchase requirements.
Frequently Asked Questions
1. Are you the manufacturer? What about after-sales service and warranty?
We are a professional manufacturer of testing equipment with comprehensive after-sales support. All machines include a 12-month warranty from shipment date, with an additional 2-month extension for sea transportation. We provide free maintenance during the warranty period and offer technical support via email or video consultation, with solutions typically provided within 24-48 hours of problem identification.
2. What is the delivery time?
Standard models are typically available for immediate shipment if in stock. For out-of-stock standard machines, delivery time is approximately 15-20 working days after deposit receipt. Urgent orders receive priority handling.
3. Do you accept customization and OEM services?
Yes, we offer both standard and customized machines to meet specific requirements, including OEM services with client branding.
4. How is the machine installed and operated?
Most machines are shipped fully assembled, requiring only power connection. We provide English operation videos and can assist with on-site installation when necessary.
Company Profile
Dongguan Liyi Environmental Technology Co., Ltd is a high-tech enterprise specializing in environmental testing equipment. With production facilities in Dongguan and a service office in Kunshan, we serve customers in over 150 countries. Our product range includes environmental test chambers, material testing equipment, and customized solutions that meet international standards.
Liyi Salt Spray Test Chamber with ACSS 35°C±1°C and CASS 50°C±1°C for NSS Testing and 180L Capacity 4
