Liyi Salt Spray Test Chamber with ±1°C Accuracy IP56 Protection and 12 Months Warranty for Corrosion Resistance Testing

1
MOQ
Liyi Salt Spray Test Chamber with ±1°C Accuracy IP56 Protection and 12 Months Warranty for Corrosion Resistance Testing
Características Galeria Descrição de produto Peça umas citações
Características
Especificações
Precisão: ± 1 ° C.
Poder: 500W
Classe de proteção: IP56
Tensão: 220 V, 380 V, 240 V, 110 V
Volume da câmara de teste: 108L/270L/600L/1440L ou personalizado
Quantidade do pulverizador: 1.0~2.0ml/80cm2/h
Ph: 6.5~7.2 3.0~3.2
Temperatura da Câmara de Teste: NSS.ACSS 35°C±1°C/CASS 50°C±1°C
Temperatura do ar saturada: NSS.ACSS 47°C±1°C/CASS 63°C±1°C
Controlador: Tela sensível ao toque PID ou LCD
Fonte de energia: 220V 50Hz/380V 60hZ
Capacidade máxima de líquido: 15L/25L/40L/40L
Tamanho da câmara de teste: 60*45*40cm/90*60*50cm/120*100*50cm/200*120*60cm
Volume Externo: 107*60*118cm/141*88*128cm/190*130*140cm/270*150*150cm
Adição de água: Automático
Destacar:

±1°C Accuracy Salt Spray Test Chamber

,

IP56 Protection Salt Fog Test Chamber

,

12 Months Warranty Corrosion Test Equipment
Informação básica
Lugar de origem: Guangdong, China
Marca: Liyi
Condições de Pagamento e Envio
Descrição de produto
Liyi Paint Salt Fog Corrosion Test Equipment Chamber Salt Spray Test Machine
The Liyi salt spray test machine determines the corrosion resistance of iron metals or their inorganic/organic coatings, including electroplating, anodizing, conversion coatings, and paint finishes.
This accelerated corrosion test evaluates protective finishes by exposing coated samples to corrosive conditions. The appearance of corrosion products is assessed over time, with test duration varying based on the coating's corrosion resistance.
Key Features
  • Bo Nute Principle spray nozzle prevents saline crystallization while atomizing test solution
  • Digital microcomputer controller ensures precise temperature regulation
  • Comprehensive display shows temperature, humidity, pressure, spray capacity, and time
  • Complies with international test specifications
Technical Specifications
Model LY-609-60 LY-609-90 LY-609-120 LY-609-200
Test chamber capacity (L) 108L 270L 600L 1440L
Max capacity of test liquid (L) 15 25 40 40
Test chamber size L*W*D (cm) 60*45*40 90*60*50 120*100*50 200*120*60
Outside Volume L*W*D (cm) 107*60*118 141*88*128 190*130*140 270*150*150
Power AC220V,10A AC220V,15A AC220V,30A AC220V,30A
Temperature Parameters
Test Type Test Chamber Air Cylinder
NSS/ACSS 35℃±1℃ 47℃±1℃
CASS 50℃±1℃ 63℃±1℃
Additional Specifications
  • Water adding device: Automatic
  • Spray quantity: 1.0~2.0ml/80cm²/h
  • PH range: 6.5~7.2 / 3.0~3.2
Product Images

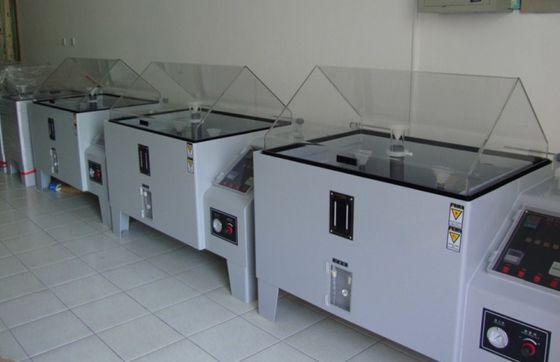

Liyi Salt Spray Test Chamber with ±1°C Accuracy IP56 Protection and 12 Months Warranty for Corrosion Resistance Testing 0

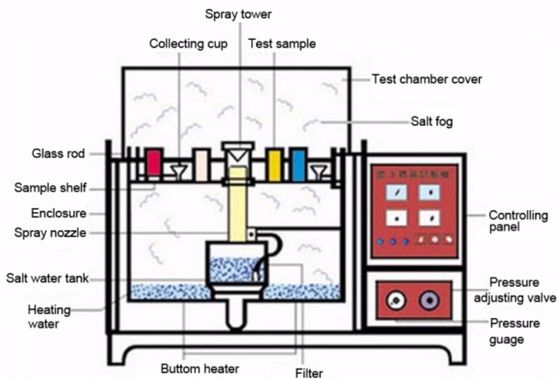

Liyi Salt Spray Test Chamber with ±1°C Accuracy IP56 Protection and 12 Months Warranty for Corrosion Resistance Testing 1

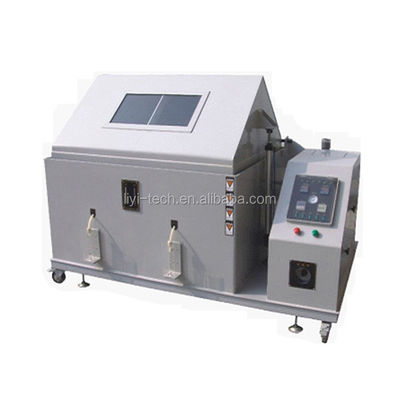

Liyi Salt Spray Test Chamber with ±1°C Accuracy IP56 Protection and 12 Months Warranty for Corrosion Resistance Testing 2

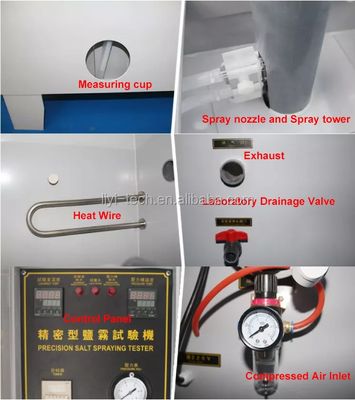

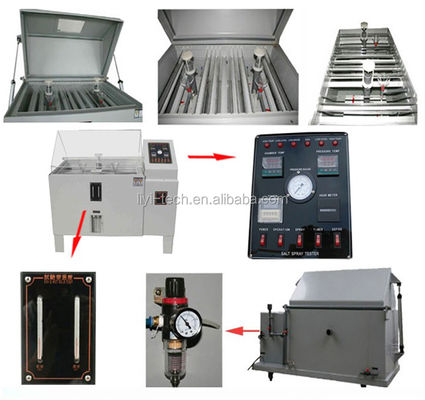

Liyi Salt Spray Test Chamber with ±1°C Accuracy IP56 Protection and 12 Months Warranty for Corrosion Resistance Testing 3
Company Profile
Dongguan Liyi Environmental Technology Co., Ltd is a high-tech manufacturing enterprise specializing in environmental testing equipment. With advanced technology, experienced personnel, and comprehensive quality management, we serve customers in over 150 countries.
Our product range includes simulated environmental testers and material testing equipment for various industries. Based in Dongguan, China's manufacturing hub, we maintain a service office in Kunshan to better serve our customers.
Frequently Asked Questions
1. Are you the manufacturer? What is your warranty and after-sales service policy?
Yes, we are a professional manufacturer of testing equipment. All machines come with a 12-month warranty (extended to 14 months for overseas shipments). We provide free maintenance during warranty and offer technical support via email or video call, with solutions typically provided within 24-48 hours.
2. What is your standard delivery time?
Standard machines are typically available from stock. For non-stock items, delivery time is 15-20 working days after deposit receipt. We can accommodate urgent requests with special arrangements.
3. Do you offer customization and OEM services?
Yes, we provide both standard and customized machines according to customer requirements, including OEM/ODM services with your logo on the equipment.
4. How is the machine installed and operated?
Most machines are shipped fully assembled - just connect the power cable to begin operation. We provide English operation videos and can assist with on-site installation when necessary.
